B-Air, linea residencial

Residential LINE

efic 14 SEER

220V

B-Air, icono frio

Cooling

B-Air, icono calor

Heating

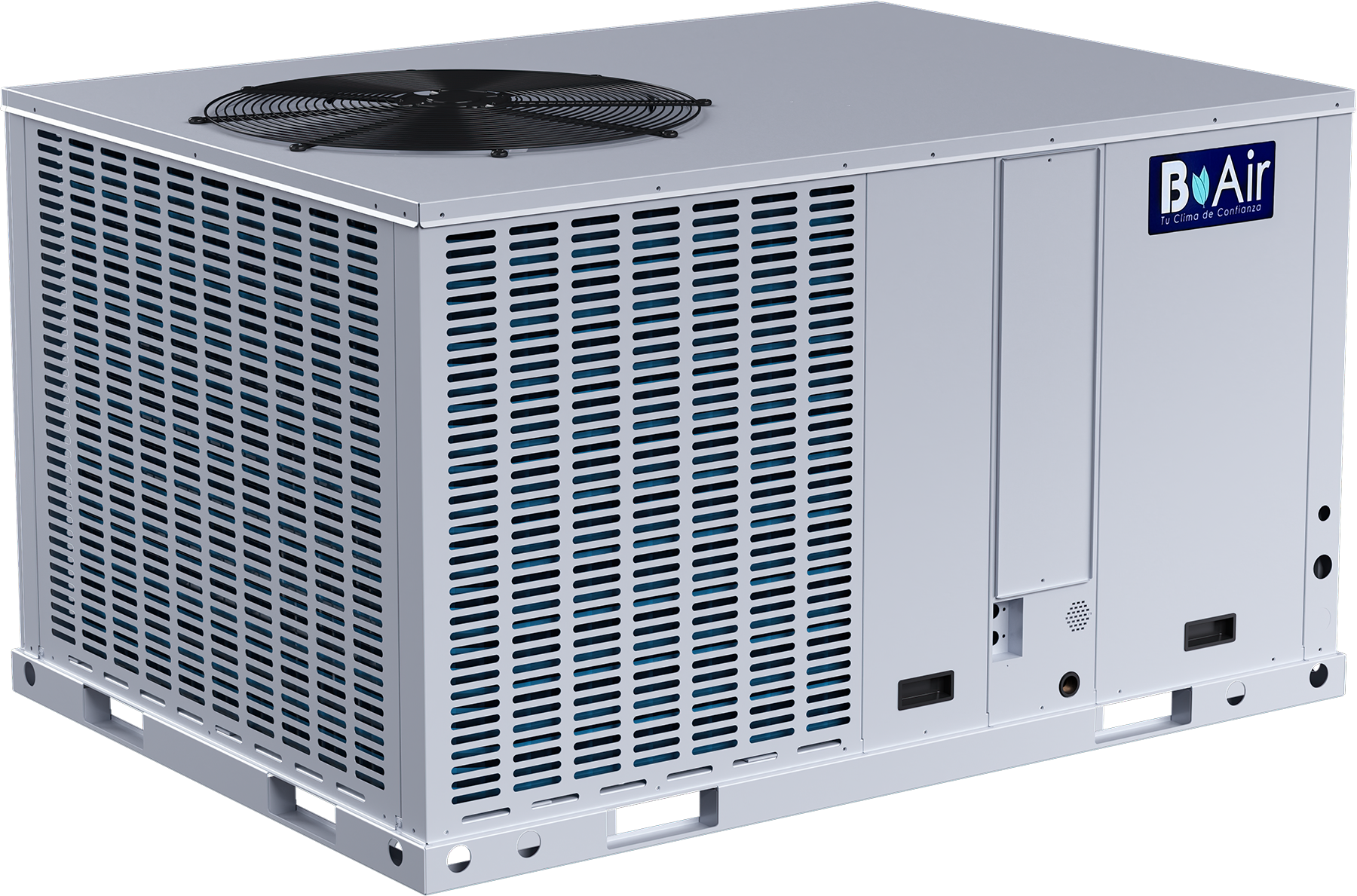

All-in-one heating and cooling system. Rooftops units will contain all of their parts in one outdoor unit that sits on either the roof or to the side of a building. Energy-efficient heating and cooling performance. All our Residential Rooftops air conditioners offer 14 SEER or higher cooling performance, making them a great option if you want to upgrade from an old system that may have only been 10 SEER. Available in 3, 4 & 5 Tons.

Available in:

3

4

5

tons

3600

4800

6000

BTUS

file_download Download cooling datasheet file_download Download cooling and heating datasheet file_download Download cooling Installation Manual

Features:

B-Air, icono enfriamento turbo
Turbo cooling
B-Air, icono display led
LED display
B-Air, icono programable
Programmable
B-Air, icono auto-resolicion de problemas
Auto-troubleshooting
B-Air, icono i feel
I Feel function
B-Air, icono control con base
Remote control wall holder
B-Air, icono modo nocturno
Night mode
B-Air, icono filtro para polvo
Dust filter
B-Air, icono detector de fugas
Leakage detection
B-Air, icono regilla con memoria de posicion
Position memory grille
B-Air, icono reinicio automatico
Automatic restart
B-Air, icono modo c y f
C and F mode
B-Air, icono recubrimiento gold fin
Gold Fin coating

Technical specifications

Residential LINE BAP140361CMBAP180361CMBAP140481CMBAP140601CMBAP180601CMBAP140361HMBAP140481HMBAP140601HMBAP180601HM
Tons Ton3.003.004.005.005.003.004.005.005.00
Power Supply V, Hz, Ph208-230V,1PH,60Hz208/230V-1Ph-60Hz208-230V,1PH,60Hz208-230V,1PH,60Hz208/230V-1Ph-60Hz208-230V,1PH,60Hz208-230V,1PH,60Hz208-230V,1PH,60Hz208/230V-1Ph-60Hz
Refrigerant gR410A/2.2kgR410AR410A/3.1kgR410A/4.0kgR410AR410A/2.2kgR410A/3.1kgR410A/4kgR410A
Cooling
Cooling Capacity Btu/h3420034200465005700057,00034200465005700057,000
Input W3,237-4,3055,355-3,2374,3055,35541.8
Rated current A14.2225.118.9125.5441.814.2218.9125.54-
Efficiency But/h/W14.00 SEER16.90 SEER14.00 SEER14.00 SEER16.90 SEER14.00 SEER14.00 SEER14.00 SEER16.90 SEER
Max Power Input W---------
Max Current A---------
Heating
Heating Capacity Btu/h-----34200465005700057000
Input W---------
Rated current A---------
COP But/h/W---------
Max Power Input W---------
Max Current A---------
Indoor Unit
Net Dimensions (Width*Depth*Height) mm---------
Packing Dimensions (Width*Depth*Height) mm---------
Net Weight kg---------
Outdoor Unit
Net Dimensions (Width*Depth*Height) mm1321x958x6301321x630x9581486x1068x8401486x1068x8401486x840x10681321x958x6301486x1068x8401486x1068x8401486x840x1068
Packing Dimensions (Width*Depth*Height) mm1340x970x6551340x655x9651505x1075x8651505x1075x8651505x865x10751340x970x6551505x1075x8651505x1075x8651505x865x1075
Net Weight kg162143/146214221194/198162214221194/198
Connecting Pipe
Gas in---------
Liquid in---------
Compressor 1
Model ASG300N1UMTATM240D57UFTABG042KAAABA051KABATF400D64UMVSADA031N1ULBABG042KAASADC051N1ULB-
Type ScrollRotaryScrollScrollRotaryScrollScrollScroll-
RLA_LRA A13/72-17.3/10821.5/125-X/8317.3/10827-140-
Capacitor uF60-7075-457070-
Compressor 2
Model ---------
Type ---------
RLA_LRA A---------
Capacitor uF---------
Evaporator motor
Model ZKSD-370-12-3-YKS-400-6-9ZKSD-560-12-3-ZKSD-370-12-3YKS-400-6-9ZKSD-560-12-3-
Type ECMECMPSCECMECMECMPSCECMECM
Output HP1/21/23/43/43/41/23/43/41/3
Capacitor uF--20---20--
FLA A4.1-3.66-4.13.66-
